Welcome to the dedicated page for the UltraDIAL 4G, the latest innovation in our lineup, now available at ultrasecuredirect.com. Explore the advanced features of this GSM transmitter, offering unparalleled security to various types of properties such as apartments, houses, business premises, farms, vehicles etc.

EMBEDDED GSM FUNCTIONALITY

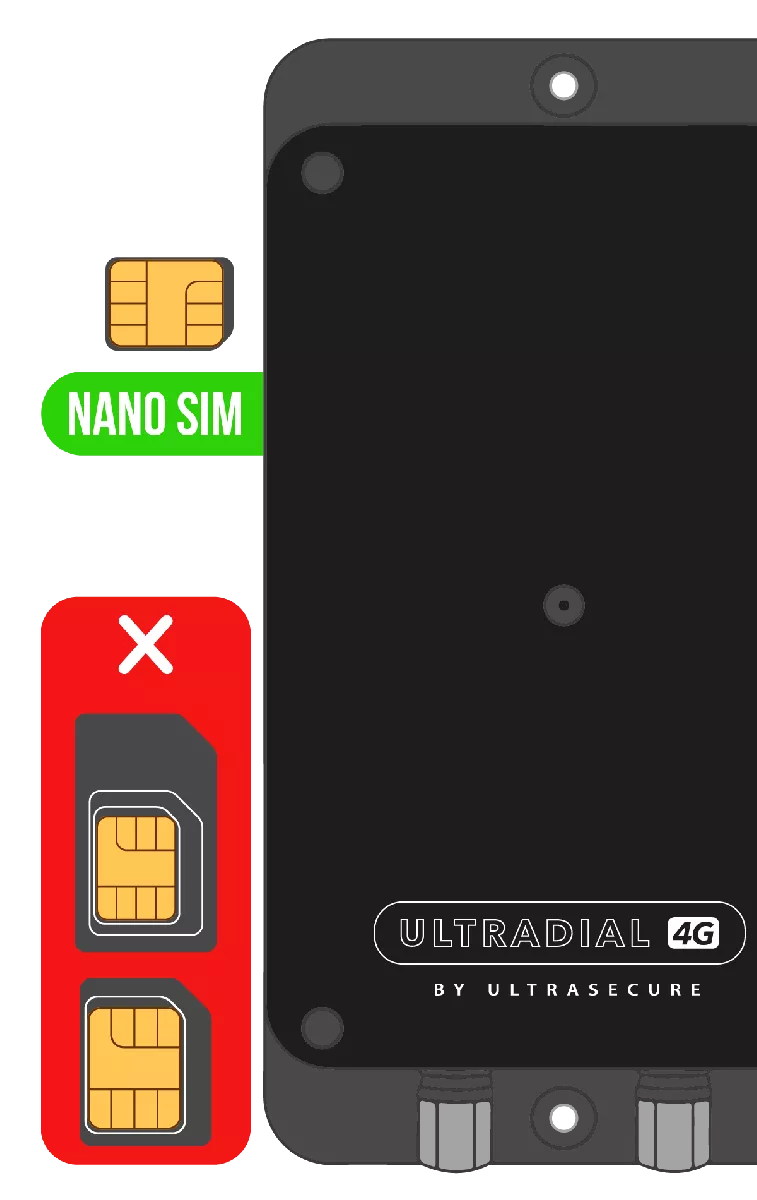

NANO SIM CARD REQUIRED

The alert transmission requires a Nano SIM card (not provided) activated by a mobile operator. When selecting an operator, choose one that offers the best network coverage in the area where the device will be installed. There's no need for an expensive plan; a basic tariff is adequate. Lastly, if your chosen operator offers it, request your new SIM card in a "multi-size" format.

---

4G MOBILE NETWORK

The UltraDIAL 4G model operates on 2G, 3G, and 4G networks, covering 99.9% of the population and is compatible with all phone types (2G, 3G, 4G, 5G, landlines). Installing a new SIM card of your choice allows the device to seamlessly call the provided numbers, independent of the user's existing phone plan, offering unparalleled flexibility. Secure your property with the UltraDIAL 4G for supreme safety.

EXCEPTIONAL BATTERY LIFE

What sets the UltraDIAL 4G apart from its competitors is its outstanding self-sufficiency. The dialer is uniquely powered by 3 AA batteries (included), delivering an impressive 8-12 months of continuous operation. This feature ensures enhanced reliability, allowing users to enjoy uninterrupted monitoring over an extended period.

Practical Tip: To further extend this already remarkable battery life, the use of lithium batteries is recommended.

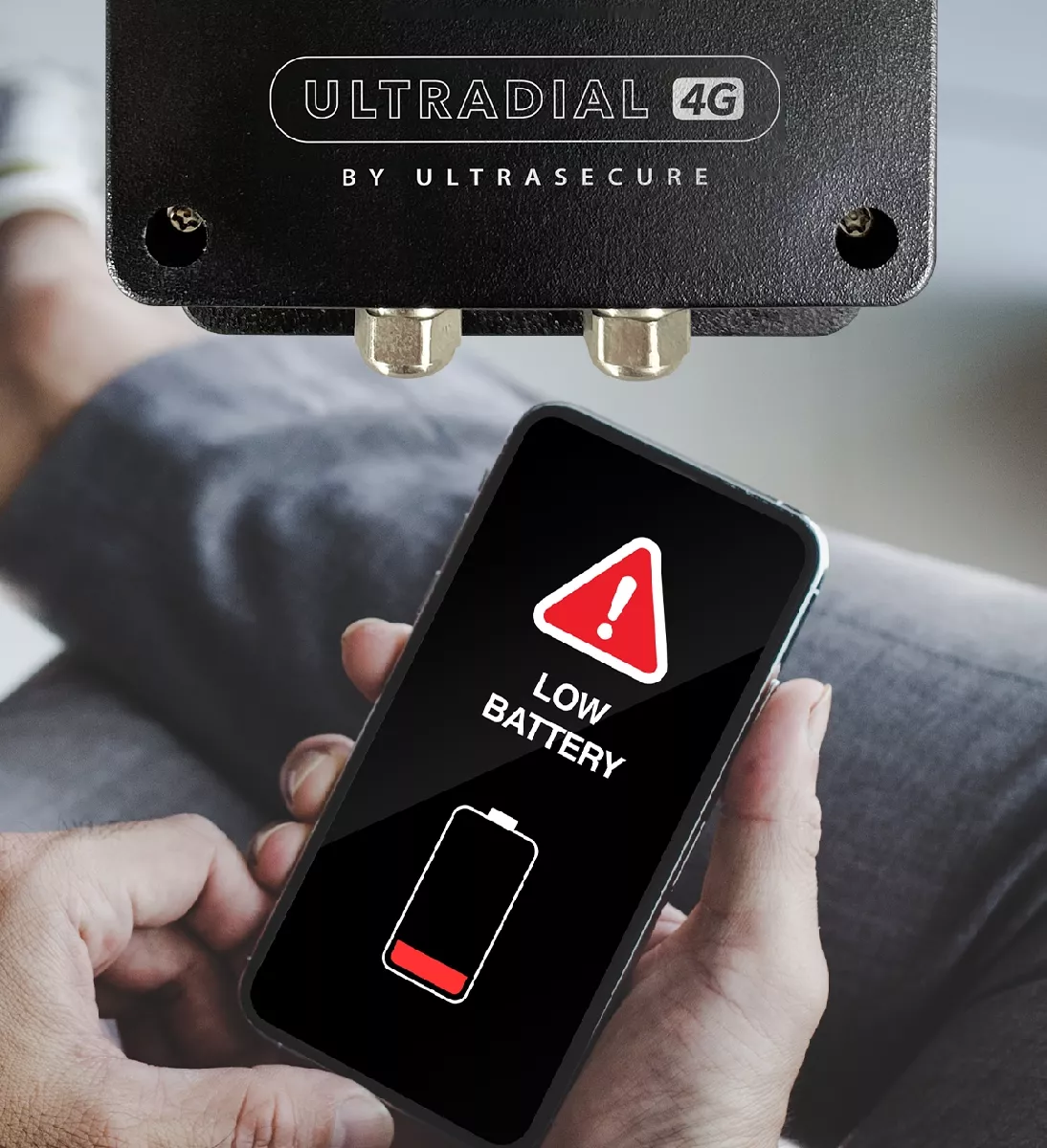

"LOW BATTERY" NOTIFICATION

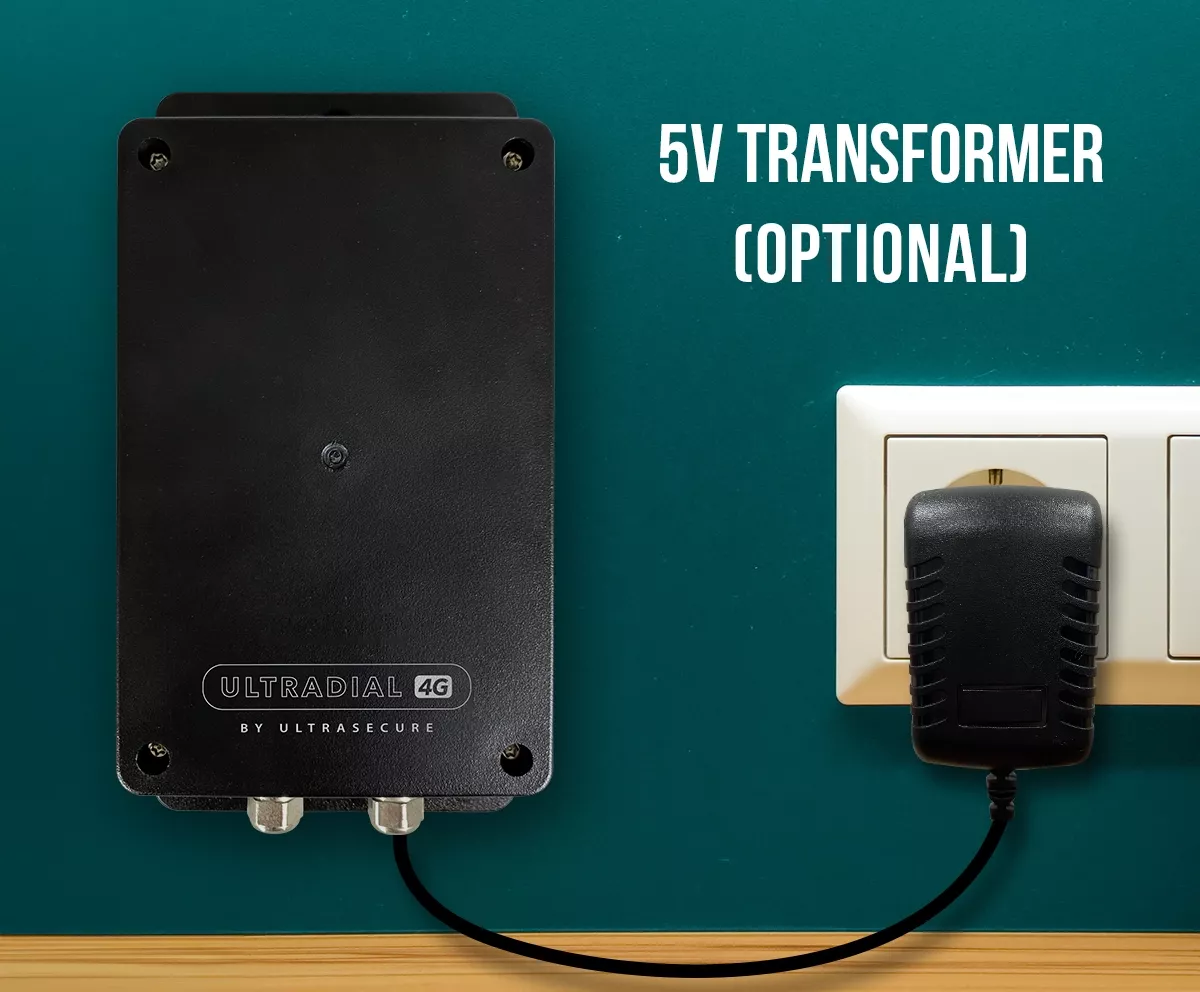

5V POWER SUPPLY OPTION

• Power Failure Alert Option: If there's a power outage for the UltraDIAL 4G, an alert SMS is sent to the primary user's number. You'll also receive an SMS notification when power is restored.

---

• SMS Arming/Disarming Option: Offers the ability to arm or disarm the system from anywhere using the administrator's number.

---

• Status Report Request: You can request a status report of the UltraDIAL 4G at any time (or on a weekly basis) via SMS. The report includes details on the system's arming status (armed or disarmed), network reception quality (rated from 1 to 4), and mains power status (plugged in or unplugged).

WIRED NO/NC INPUT

To maximize flexibility in your security device selection, the UltraDIAL 4G features a dry contact input. This input allows for the wired connection of an additional device for property surveillance. Possible devices include water detectors, pressure mats, alarm centers, door or window sensors, or any other unit that operates on a "Normally Open (NO)" or "Normally Closed (NC)" dry contact basis. In our commitment to providing a truly comprehensive and advanced solution, we've equipped the UltraDIAL 4G with two cable glands to facilitate the wiring of a wired detector. This exclusive feature ensures not only a tidy and clean installation but also plays a vital role in maintaining the GSM transmitter's IP66 certification. Therefore, you can rest assured that your security system remains weather-resistant and protected against water ingress while delivering optimal performance.

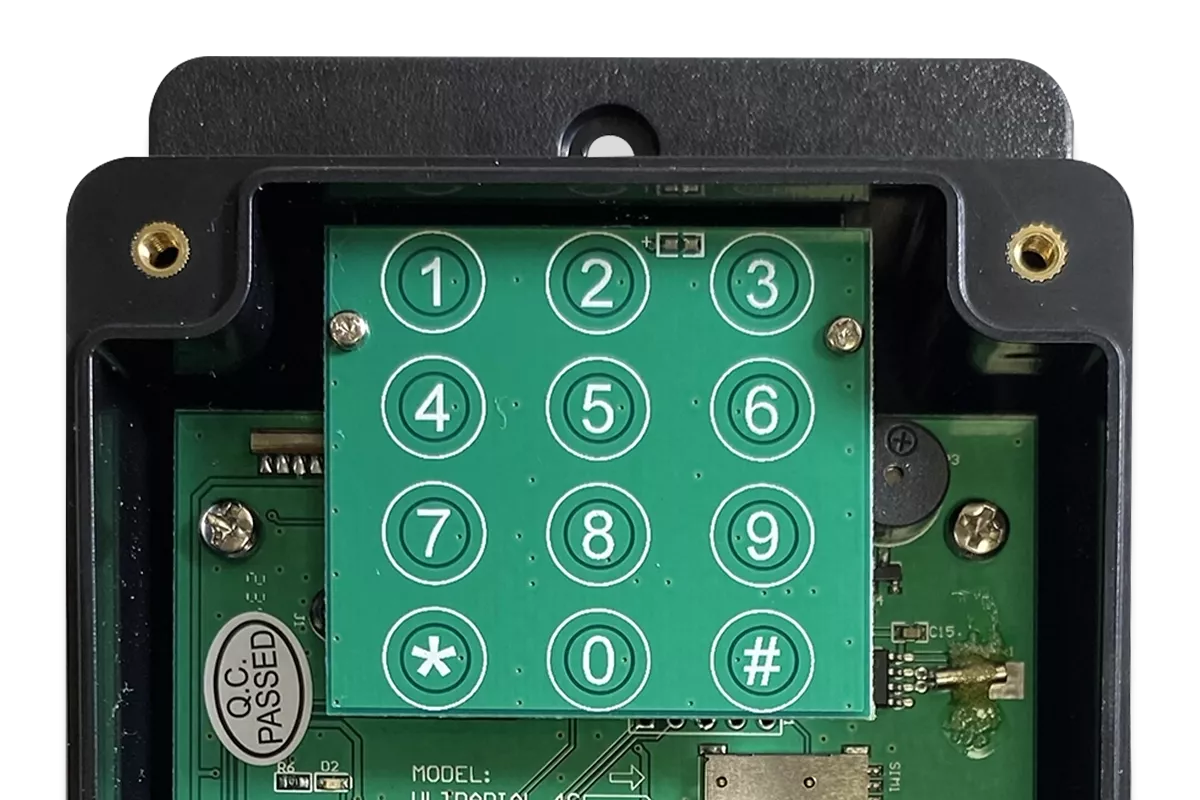

SIMPLIFIED SETUP WITH BUILT-IN KEYPAD

Configuring the UltraDIAL 4G is made effortless thanks to its user-friendly, built-in keypad. This keypad is thoughtfully shielded by a cover, fastened with four anti-tamper screws (a specialized tool is included for this purpose). It facilitates the input of up to three contact numbers for alerts upon device activation and allows for the customization of advanced features (like turning off call and/or SMS notifications, detection beeps, and more). The device comes with an in-depth English instruction manual, making its use even more straightforward. This thorough documentation ensures a smooth setup process, leading to a swift and successful implementation of the UltraDIAL 4G.

ACTIONS AND ALERTS

When the UltraDIAL 4G sends out alerts to contacts, several actions can be taken, providing maximum flexibility (please wait a few seconds after answering):

• "Ignore the call (or if no one answers)", the alarm stays armed, ready to alert you of any new possible intrusion.
• Press "*" (asterisk) on your phone keypad to stop the calls to other registered numbers while keeping the alarm armed.
• Press "#" (hash) on your phone keypad to stop the calls to other registered numbers and completely disarm the alarm. Once disarmed, the alarm can only be rearmed using the remote control.

MESH NETWORK AND CHAIN REACTION

Another advantage of our UltraDIAL 4G is its integration into the BT range, which operates on a mesh network system. The unique feature of a mesh network is that the components within the system relay (upon activation) the detection signal. When your devices are within a 100m range in open areas (or 40-60m with obstacles), they function as signal repeaters. This creates a web-like network: when a BT accessory picks up a signal from one detector, it relays it to the next, ensuring extensive coverage and responsive security.

IDEAL FOR VARIOUS SETTINGS

Whether you're securing a home or apartment, an agricultural or commercial property, a recreational vehicle (such as a caravan, boat, motorhome, or custom vehicle), a professional vehicle (like a truck or utility vehicle), or an off-grid site, our device is versatile enough to adapt to any situation. Its flexibility makes it an excellent choice for both permanent and temporary installations. Enjoy peace of mind with its straightforward use, exceptional autonomy, and easy setup.
